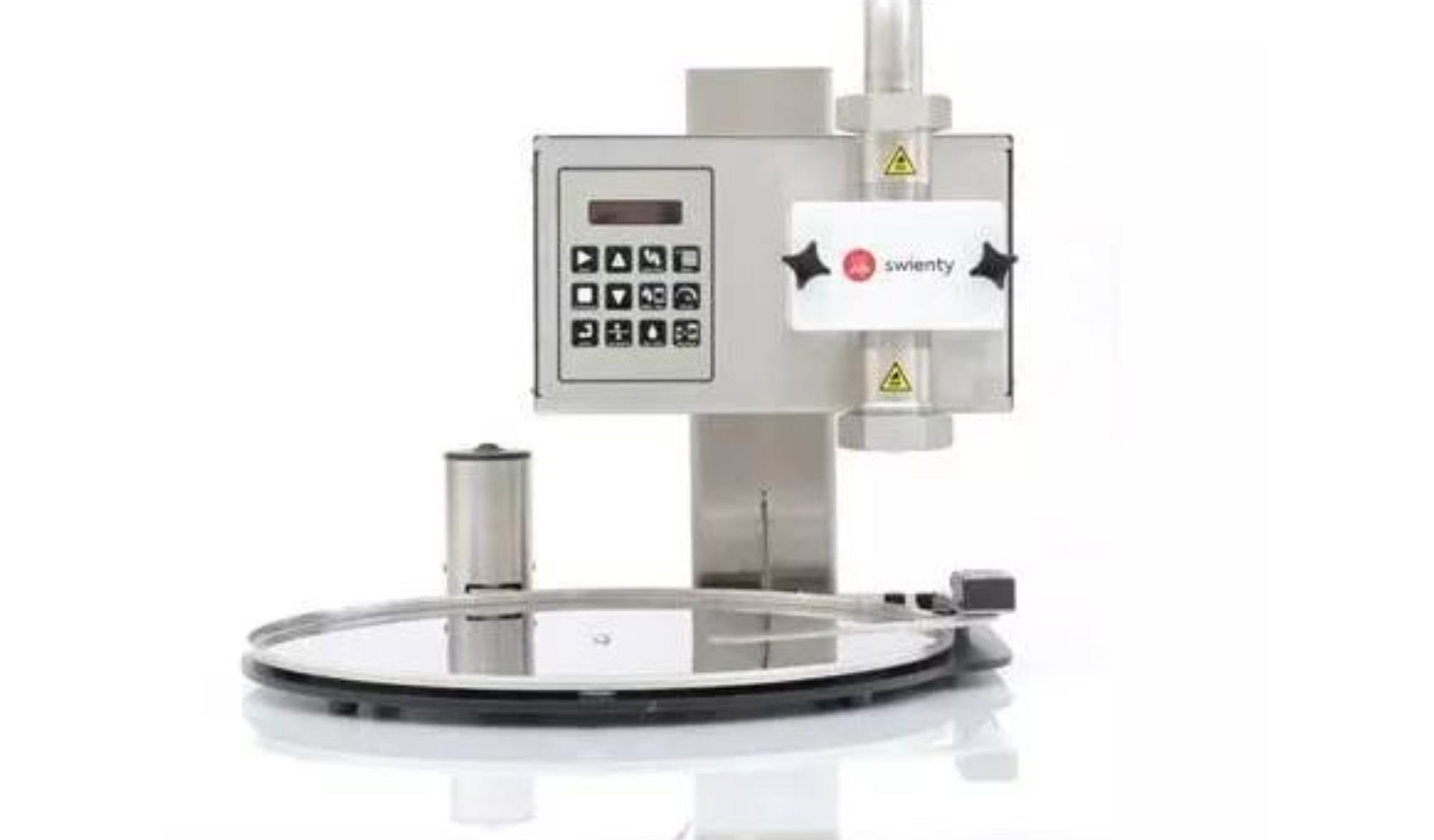

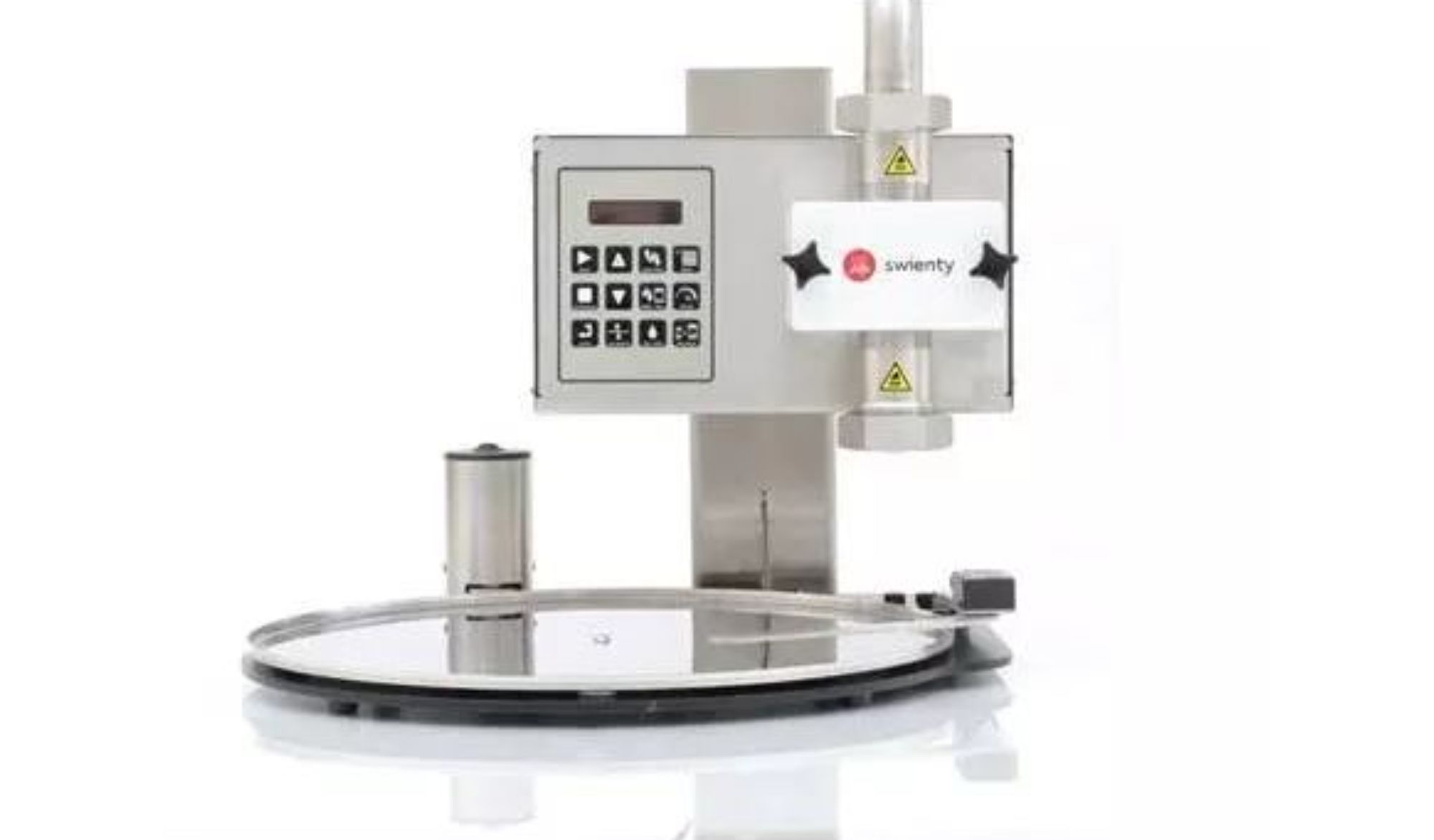

Swienty Mini Packing Machine with Turntable

• Simply place the empty jars on the table top which are then transported automatically to a contact
• Once the contact registers the jar the table stops and the filling machine starts filling the jar
• Once the jar is filled the table starts turning again until the next jar arrives in front of the contact

Instruction manual

Sensor instructions

This Swienty machine makes honey packing easier, and simpler. It has dosing electronics that manage dosing, pumping, and an anti-drip function. The capacity of this honey packing machine is approx. 360 x 500g jars per hour (with warm liquid honey) and increases with smaller jar sizes (e.g., approx. 720 x 250g jars / hour).

Technical Specifications:

• Filling table: turntable with electronic control
• Table top: stainless steel top, Ø45 cm
• Jar / Glass size: min. Ø30mmxH30mm / max. Ø120mm x H160mm
• Speed of rotation: 3 RPM
• Filling range: 10 g/oz/mL - ∞ g/oz/mL
• Pump capacity: approx. 140 L/hr (200kg honey)
• Precision: +/- 1%
• Power: 230V/50Hz, (120V/60Hz model on request)
• Power consumption: 230W
• Connections: 1 1/2” BS -> 1 1/2” hose
• Accessories included: hose, fitting, anti-drip nozzle, spare parts, etc.
• Dimensions: L55 x W50 x H41 cm
• Weight: ca. 20 kg
