Lega 4 Frame S/Steel Manual Extractor • Ecrotek
Extraction / Lega 4 Frame S/Steel Manual Extractor

Lega 4 Frame S/Steel Manual Extractor

SKU / HELE4F

Lega 4 Frame stainless steel manual extractor - with clear hinged lids. Perfect for small, medium and even some larger hobbyists!

The Lega 4 Frame Extractor allows you to extract four frames of honey at one time, ultimately speeding up the extraction process!


Loading...


Description

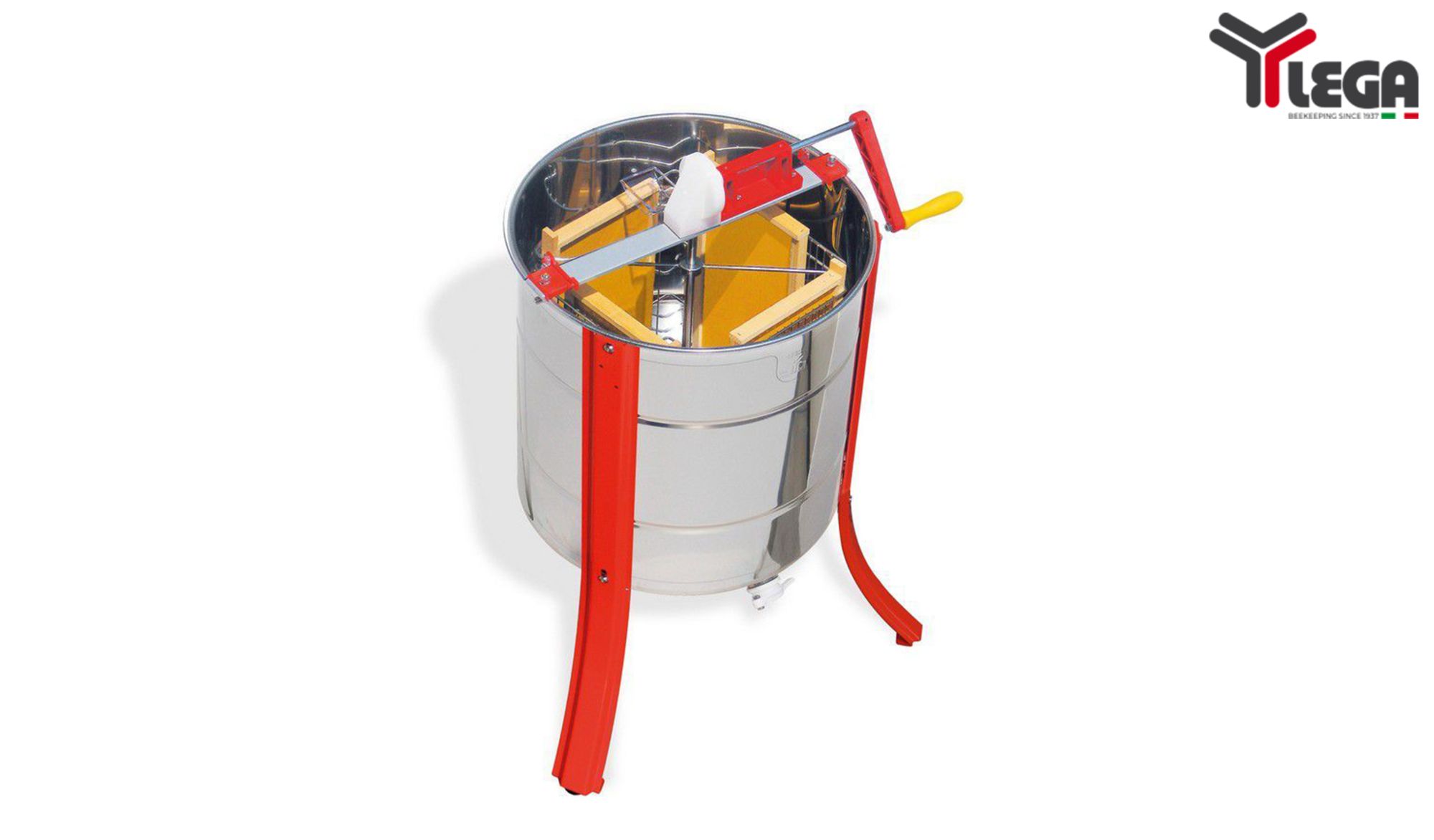

Lega 4 Frame stainless steel manual extractor - with clear hinged lids

Tangential manual honey extractor, with chrome cage for 4 frames. Fitted with nylon conical gear noiseless drive, 3 removable legs and a 47mm OD Nylon honey gate.

Stainless Steel Tank - Diameter 520mm, Tank Height 580mm, Total Height 960mm to tank top rim.

Details

Please Note: If the vertical shaft is too low the pinion gear comes too far away from the crown wheel and the gears will jump. Screwing the adjustment thread under the extractor raises the pinion gear to mesh into the crown wheel. Be careful not to over-tighten as this will cause binding and potential damage to the gears. The pinion gear should not be touching the red nylon bush/handle holder at the top – there should be a very small amount of clearance, this ensures all of the basket weight sits on the bottom bush.

Quantity Breaks

Quantity Price
1 $724.34 +GST
